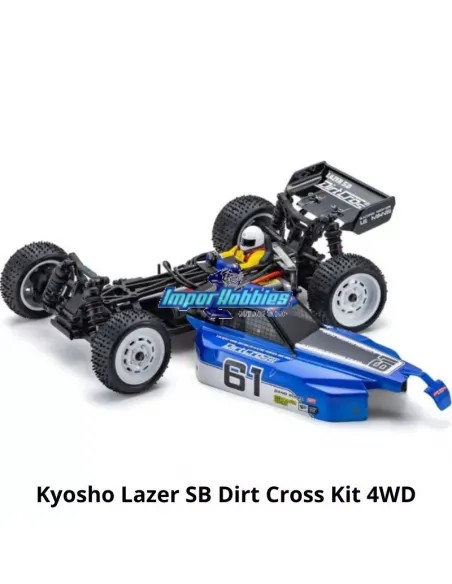

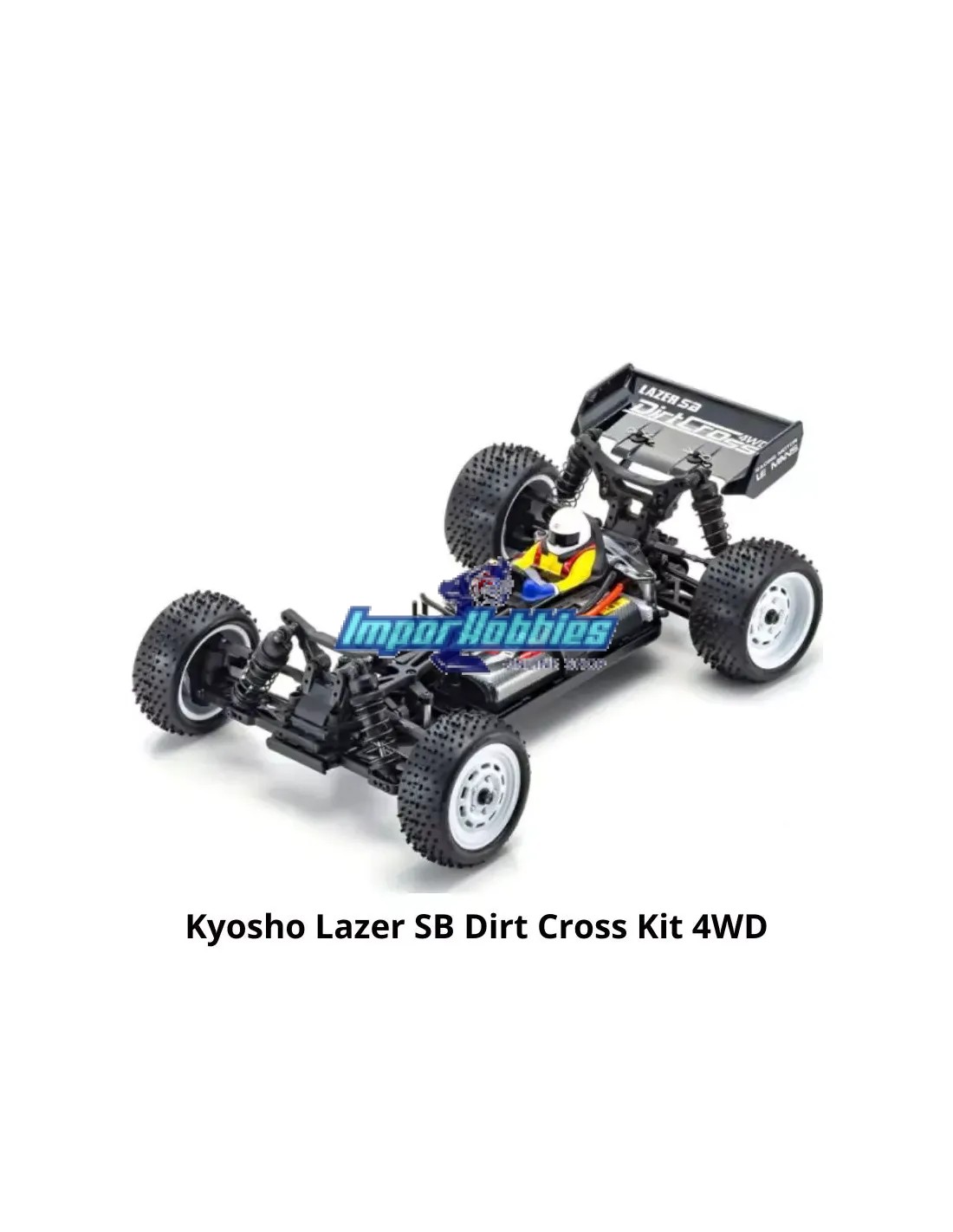

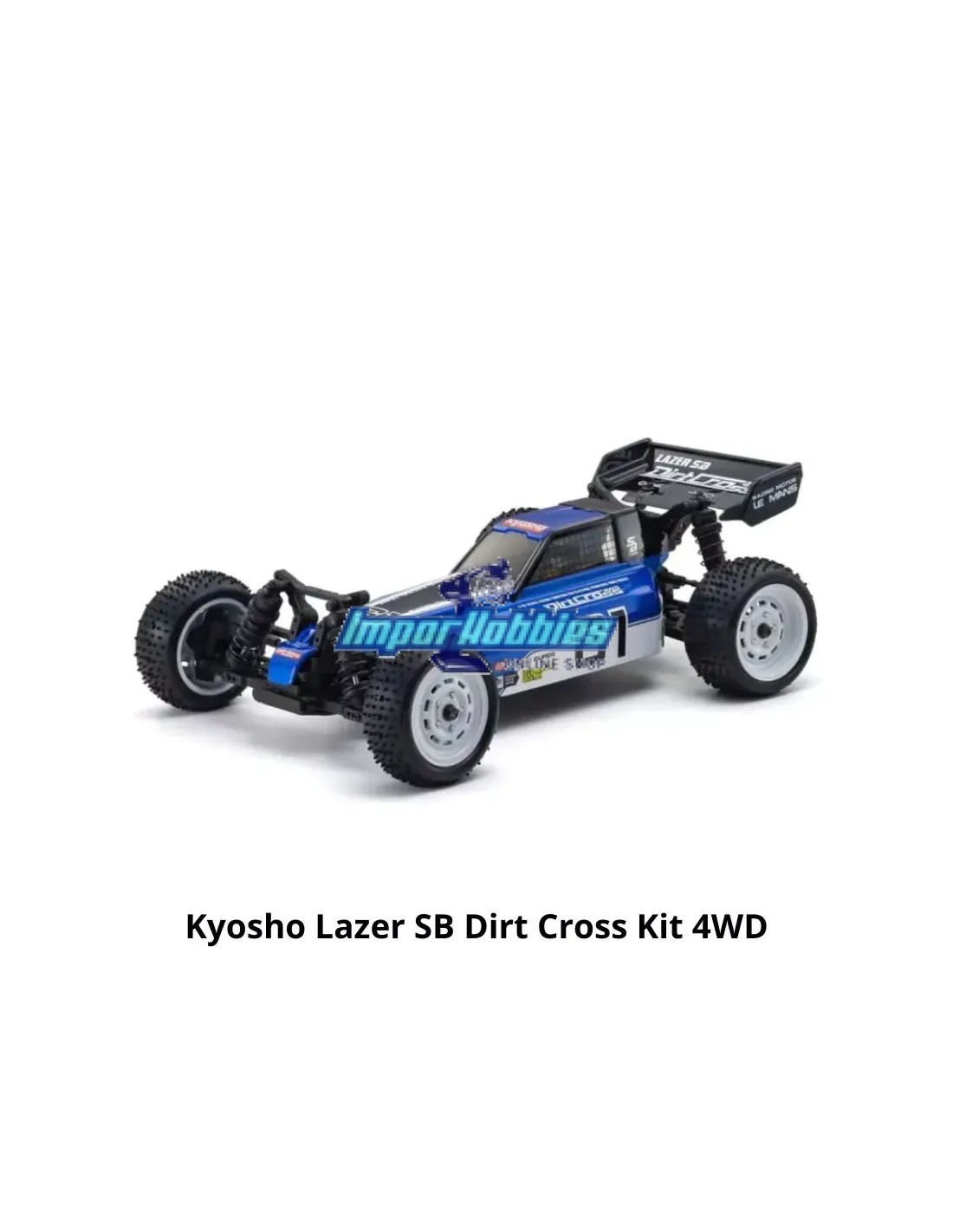

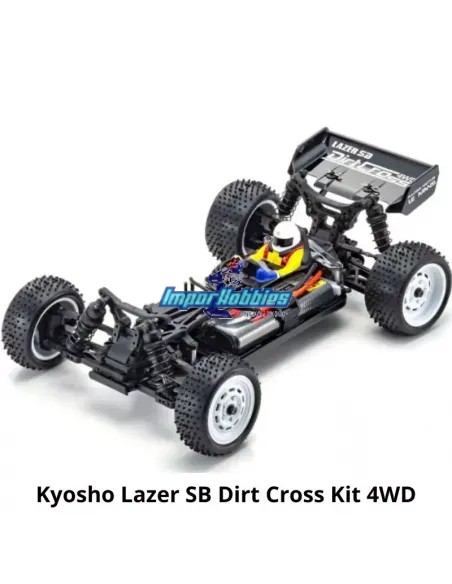

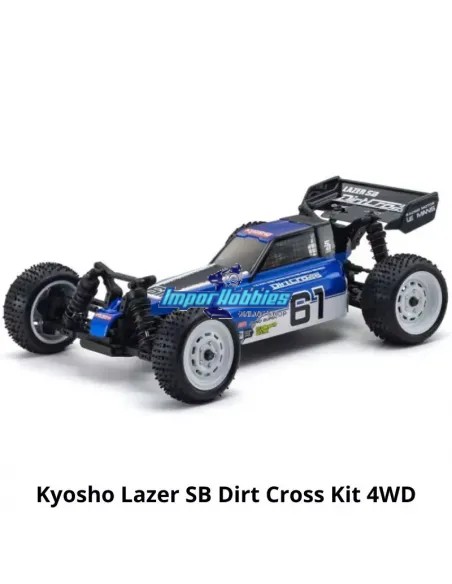

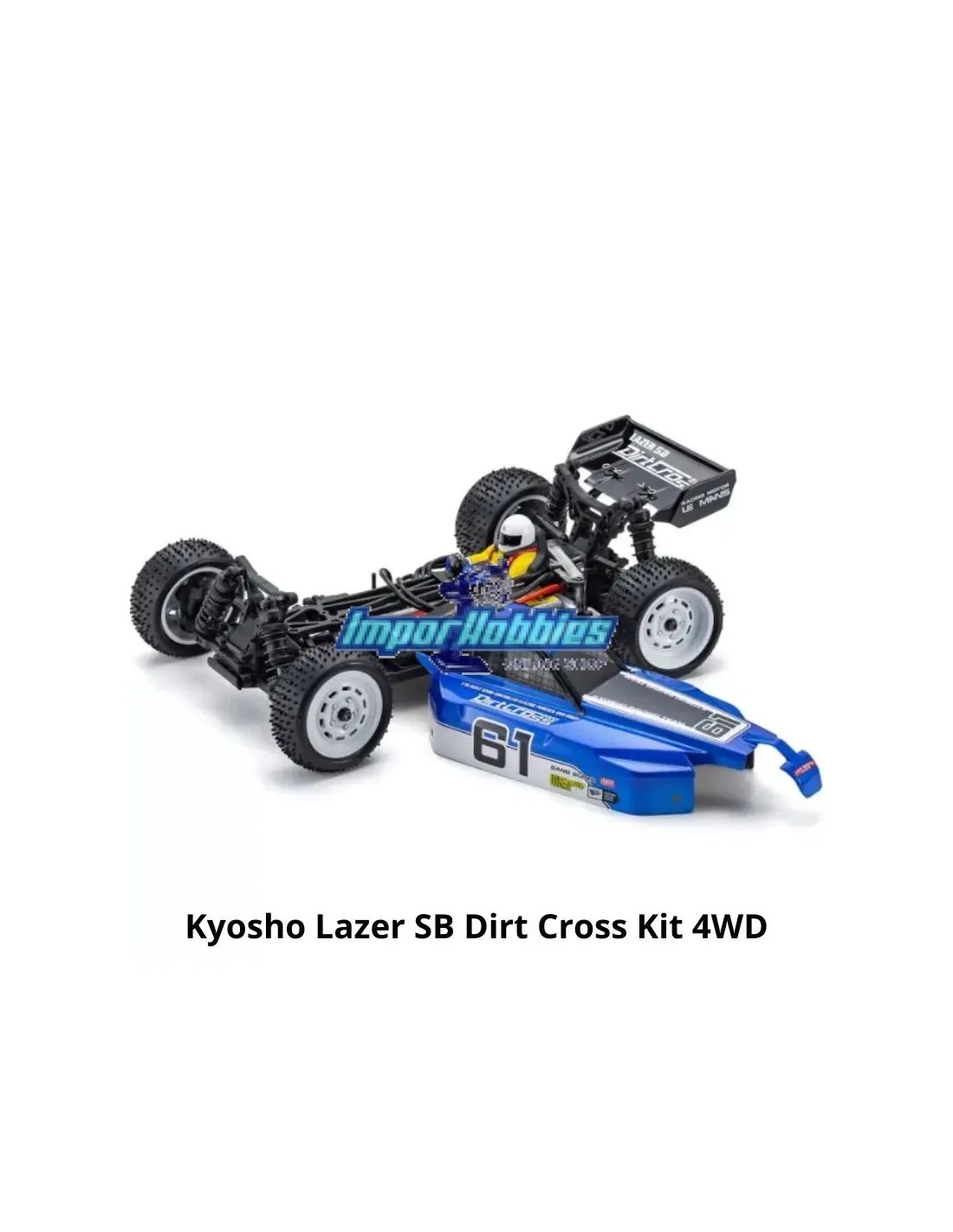

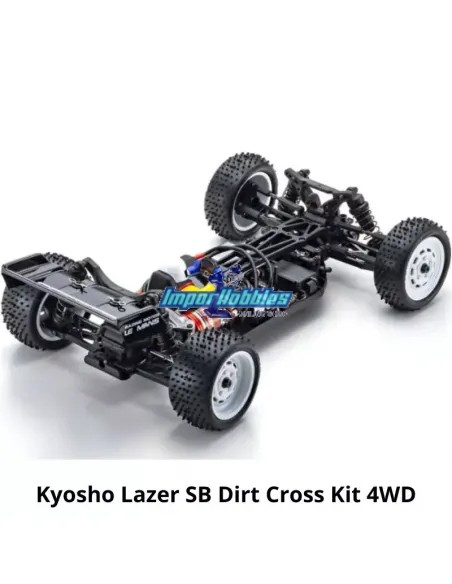

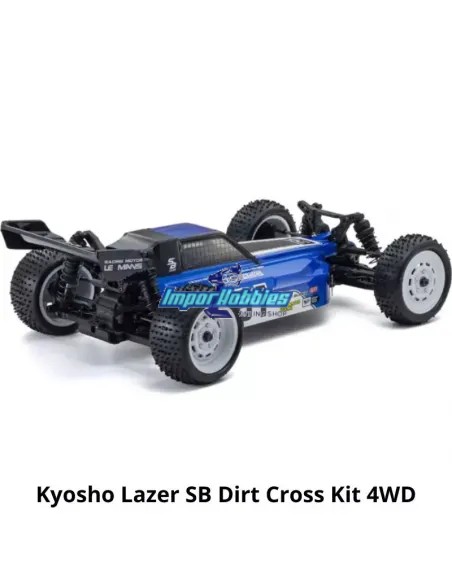

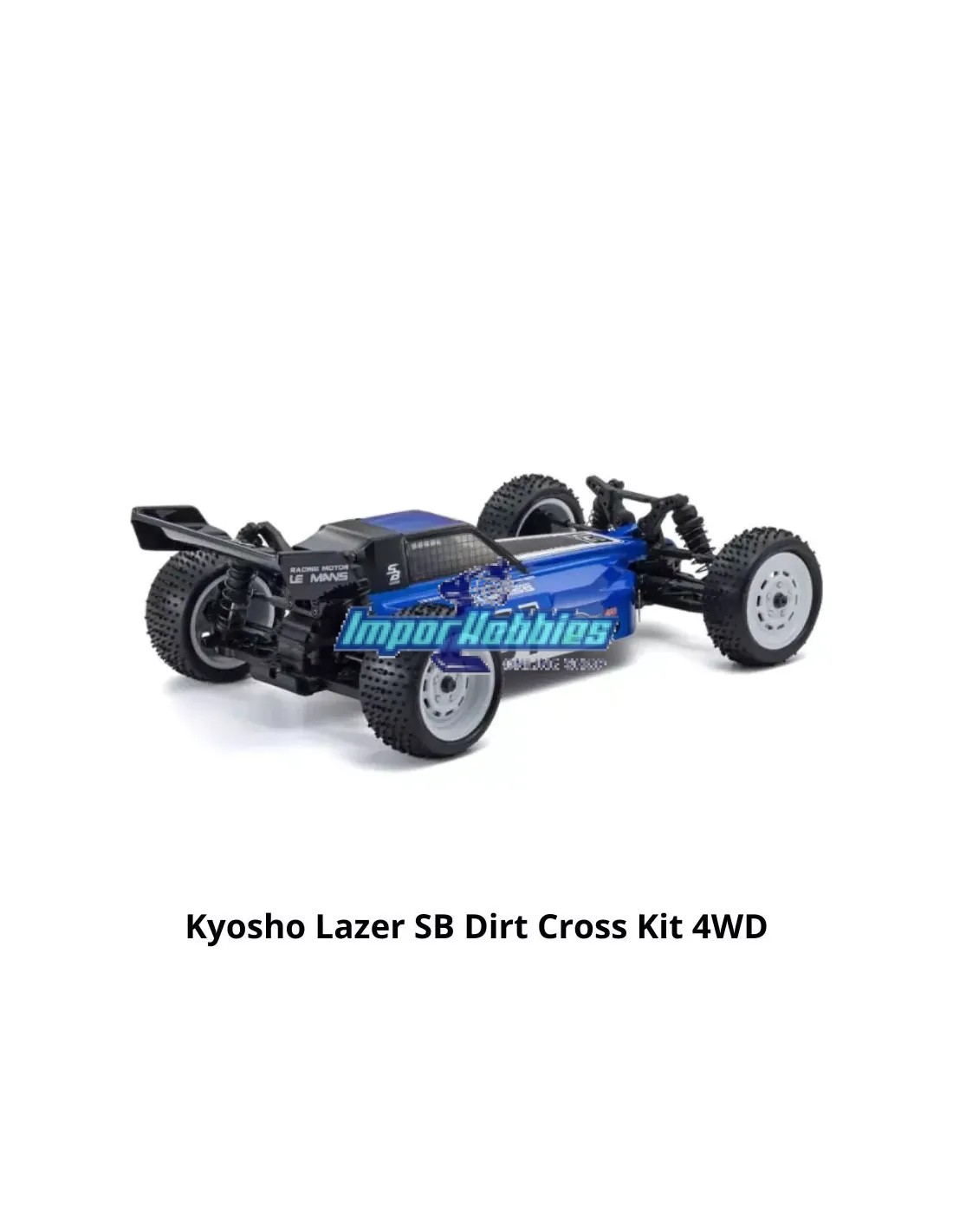

Kyosho Lazer SB Dirt Cross 4WD 1/10 Buggy EP Kit 34321

Feel the unique power and control of 4WD

Next-gen basic buggy built on a pure racing base

In the long and distinguished history of 1/10 EP (electric) R/C racing buggies, there are two types based on different drive systems.

Rear 2WD models are typically easier to assemble and maintain and exhibit nimble driving characteristics; and then there are the equally popular 4WD models, which use drive force to all four wheels for superior traction on low-grip roads compared to 2WD.

For drivers considering a step up from entry-level models, we are proud to introduce the Lazer SB Dirt Cross 4WD, which is a cost-optimized version of the competition-level ZX-5 that has continued to evolve performance and control as the cutting-edge of Kyosho’s worldwide 4WD EP buggy racing campaigns. While the suspension and driven system are retained from the proven Lazer ZX-5, the Dirt Cross does much more than reduce costs; it is designed to appeal to a new generation of R/C racers.

While retaining its basic shape, the main chassis has been updated and optimized for the latest battery and motor systems. However, the body has been completely redesigned with a rear positioned cabin (instead of the usual forward-cabin of racing models), driver figure, and newly developed spoke wheels for a classic retro buggy style.

As the Dirt Cross is based on a purebred race model, performance is guaranteed.

Combining the most comprehensive fit out at a great value price, all the fun and performance off-road R/C has to deliver is perfectly optimized into this mid-range 4WD buggy.

●Optimal price : performance ratio is realized in this standard EP 4WD buggy based on a high performance racing buggy.

●Equipped with proven and reliable shaft-driven 4WD system.

●New body is designed with a classic rear cabin style. Also includes rear wing and driver figure.

●Front and rear gearboxes are equipped with gear differential, ensuring reliable operational stability over long periods. Can also be replaced with an optional ball differential.

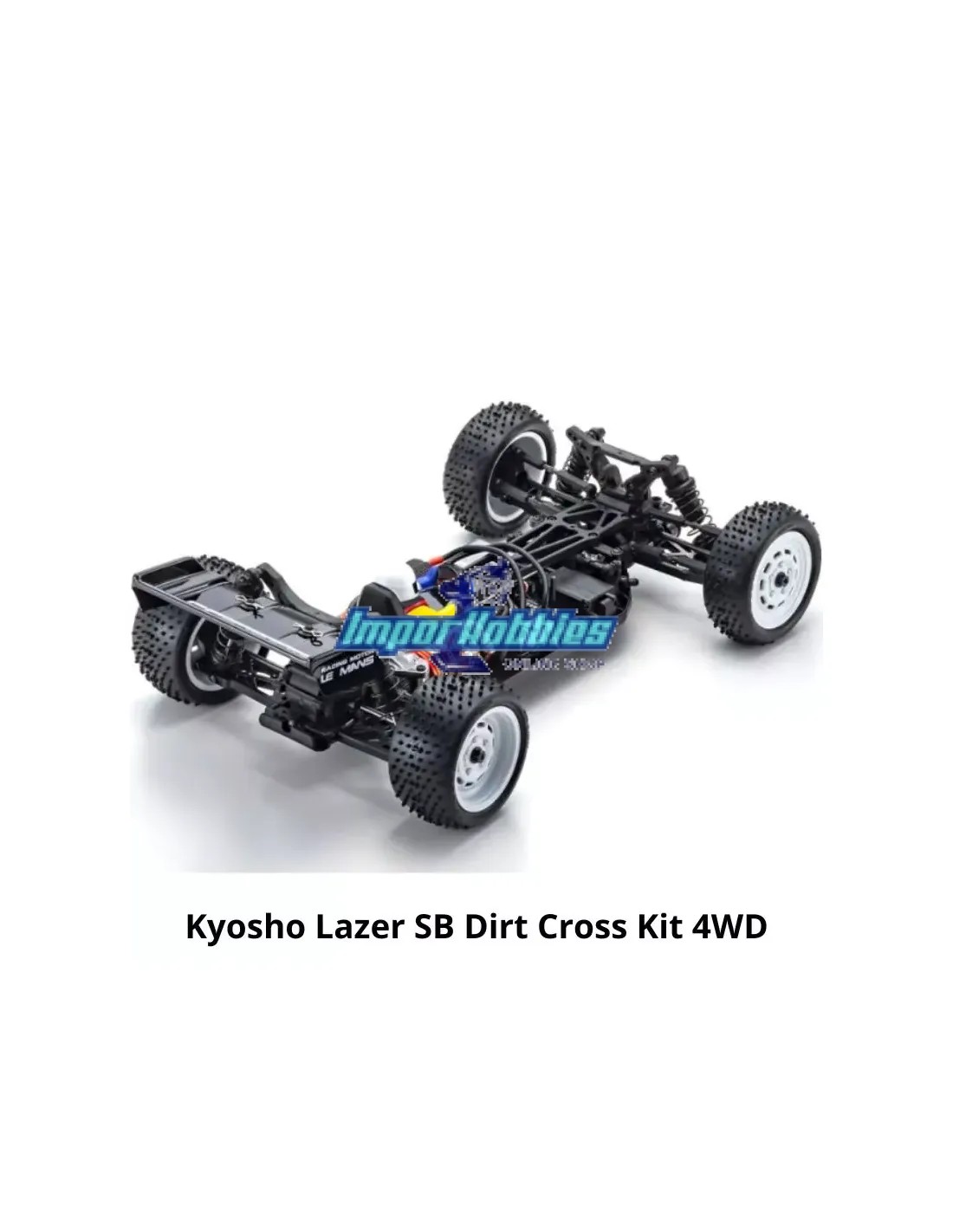

●Features high rigidity and lightweight resin main chassis. In addition to various shaped standard batteries, short-type LiPo batteries can also be installed.

●Race-proven double wishbone front and rear suspension provides exceptional running stability. Oil shocks are height adjustable.

●H-pin tires provide stable grip on a wide range of road surfaces.

●Spoke wheels recreate that real racing buggy style with a retro look to match the body.

●Full bearing specifications are standard and greatly increase drive system efficiency.

●Compatible with various optional parts and shock springs from the Lazer series.

TECHNICAL DATA:

■Length 395mm

■Width 245mm

■Height125mm

■Wheelbase 268.5mm

■Tread（Ｆ／Ｒ） 209mm／201mm

■Tire F:φ88×33mm R:φ88×40mm

■Gear Ratio 8.13：1

■Weight 約1,450g

■Motor (sold separately)

KIT CONTENT:

●Unassembled kit set

●Body

●Wing

●Tire

●Wheels

●Pinion Gear(24T)

●Ring Gear Grease

●Hex wrench（1.5mm/2.0mm/2.5mm）

●Cross wrench

REQUIREMENT TO RUN:

■2ch-3ch R/C car transmitter

■Servos

■ESC

■Motor

■Silicon oil for Shock

■Batteries for receiver

■Charger for battery

■Paint for body

■Tool
