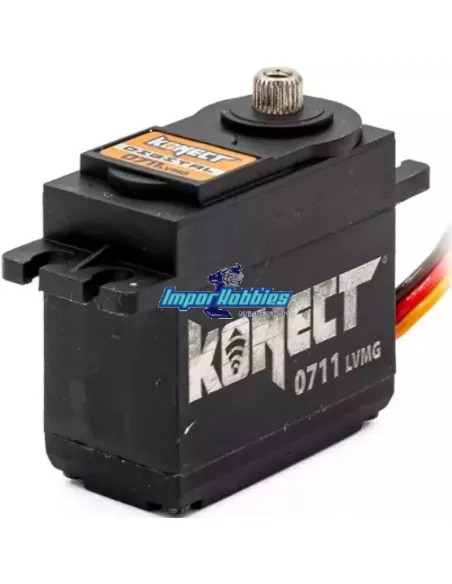

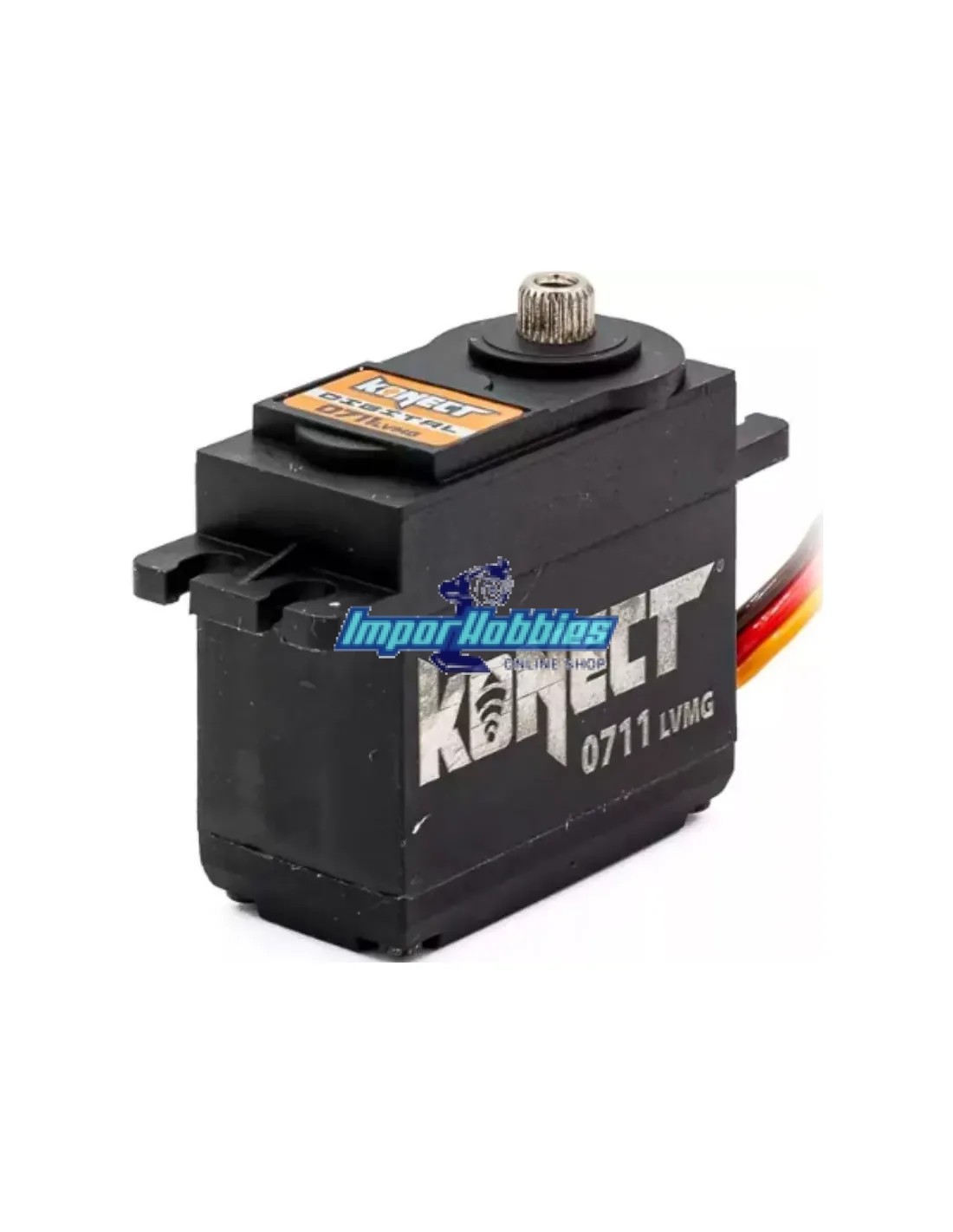

Digital Servo - 7.5Kg - 0.11S. Konect KN-0711LVMG

The Konect KN-0711LVMG digital servo has been developed as a performance and economical option for beginner racers and readyset or kit rc cars.

The servo has plastic cases and coreless motors.

The servo comes mounted with a metal sprocket to improve durability.

Not compatible with lipo batteries.

Specifications:

• Force & Speed at 4.8V: 6.5kg-cm - 0.13s.
• Force & Speed at 6.0V: 7.5kg-cm - 0.11s.
• Operating voltage: 4.8V ~ 6.0V
• Weight: 55gr. (not including accessories)
• Bearing type: Ball bearing
• Output shaft (Arm / Horn): 25T
• Motor Type: Coreless
• Gear type: copper
• Operating temperature: -20 ℃ ~ 60 ℃
• Working frequency: 1520μs / 330hz

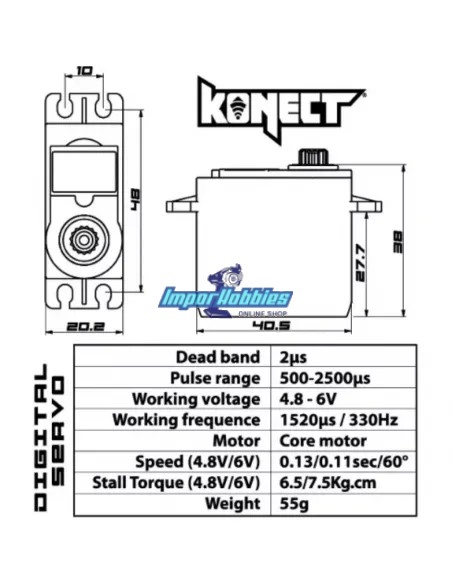

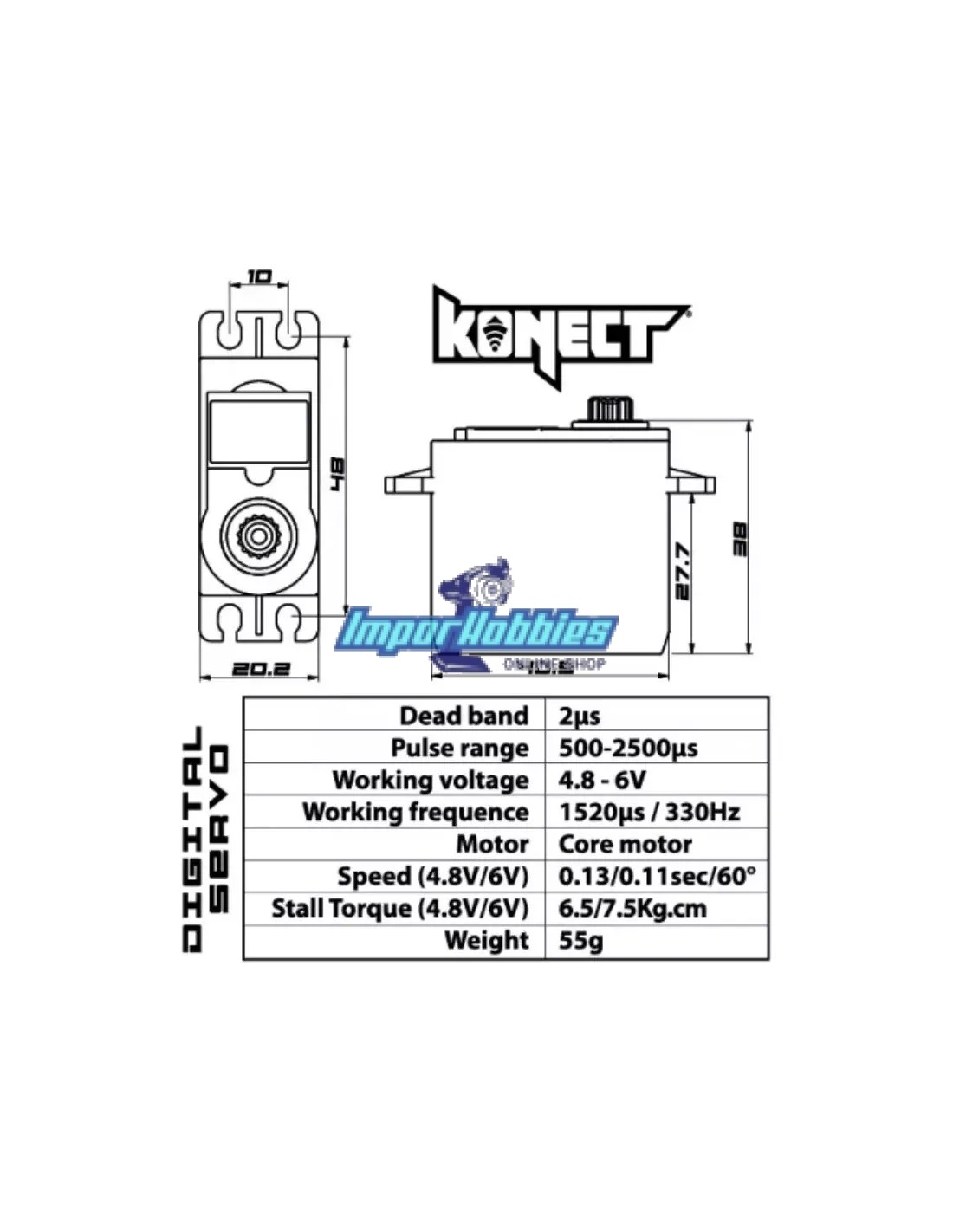

Size:

• Length: 40.5mm
• Width: 20.2mm
• Height: 38mm
