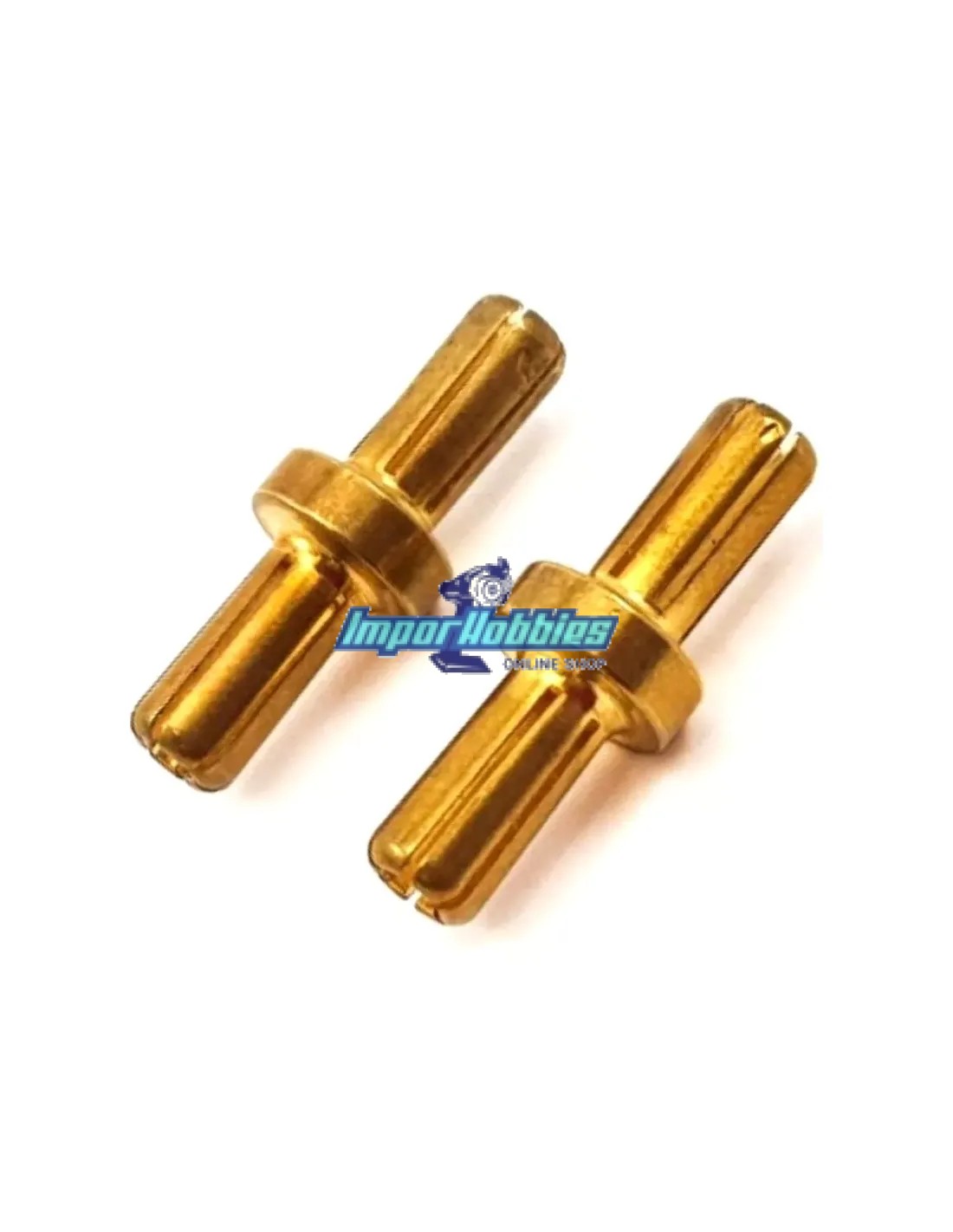

Double banana plug 5mm low resistance (2 U.) Fussion FS-00091
Double banana plug / connector 5mm low resistance (2 U.) Fussion FS-00091
2Sx2 Lipo Battery Coupler.
The 5mm dual battery bullet plugs allow you to connect two battery packs together without having to stagger them in your rc car.
Typically used in 8th scale when you want to run two 2S packs together.
Tips

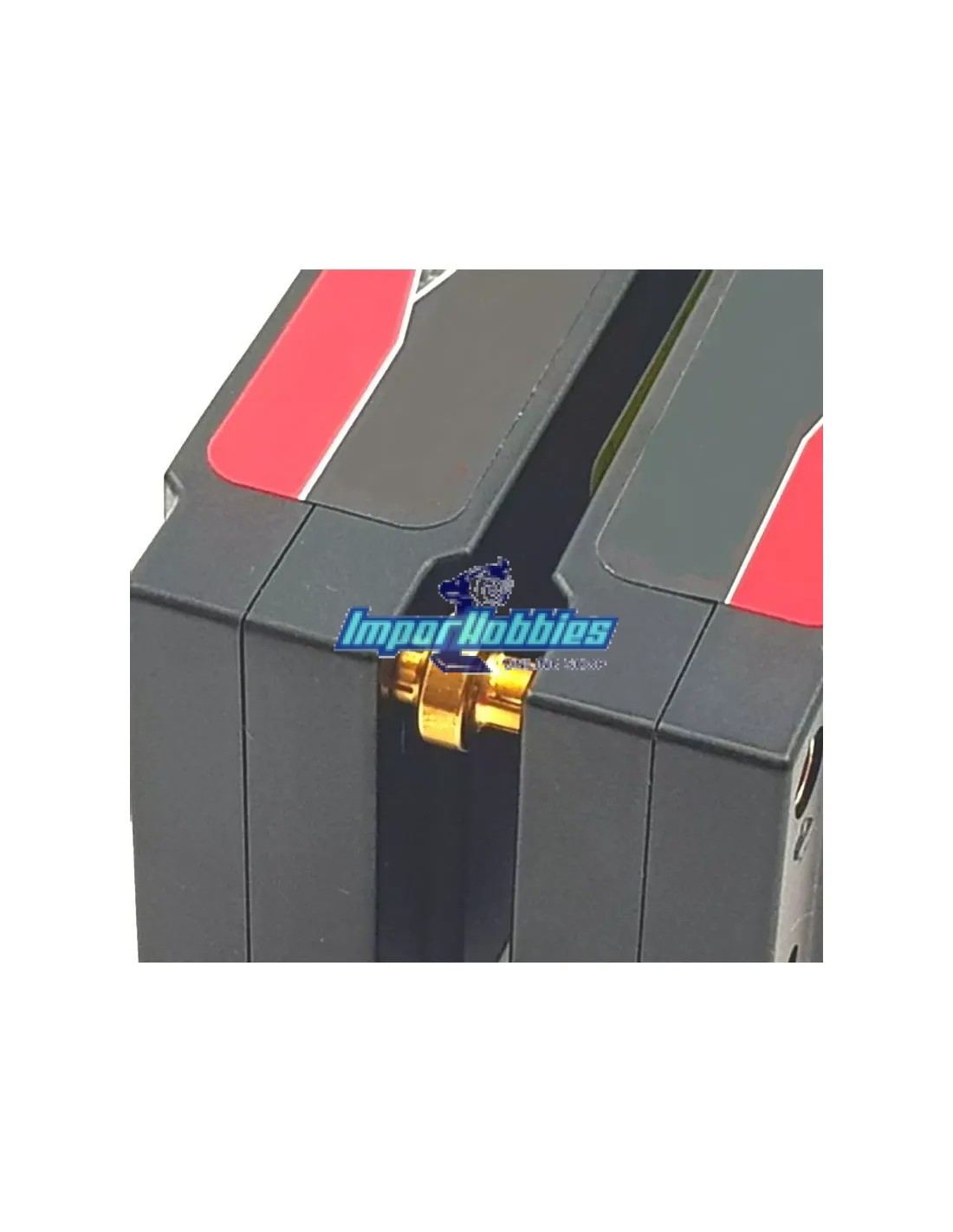

Best used on packs that have an indention where the plug goes in so the middle ring has room to set in so your batteries will be pressed together.
Now most packs that do have indentions will also require you to dremel just a bit of the center ring on the gold battery plug so you can get that flush pack.
Otherwise you should place some foam between your packs if you can't get them flush to prevent bending of the plug.
Specifications
Gold plated and 5mm thick.
Battery post 11mm long on each side, middle ring section is 3mm thick and 9mm diameter, and total length 25mm.
Includes:
(2 Pcs.) 5mm dual gold plated battery bullets.
NOTE:
This should only be used on two identical batteries, meaning each battery is the same brand, capacity and both batteries have the same cycle count.
