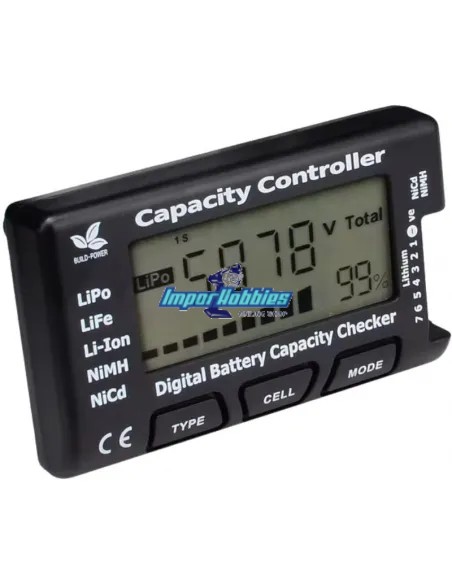

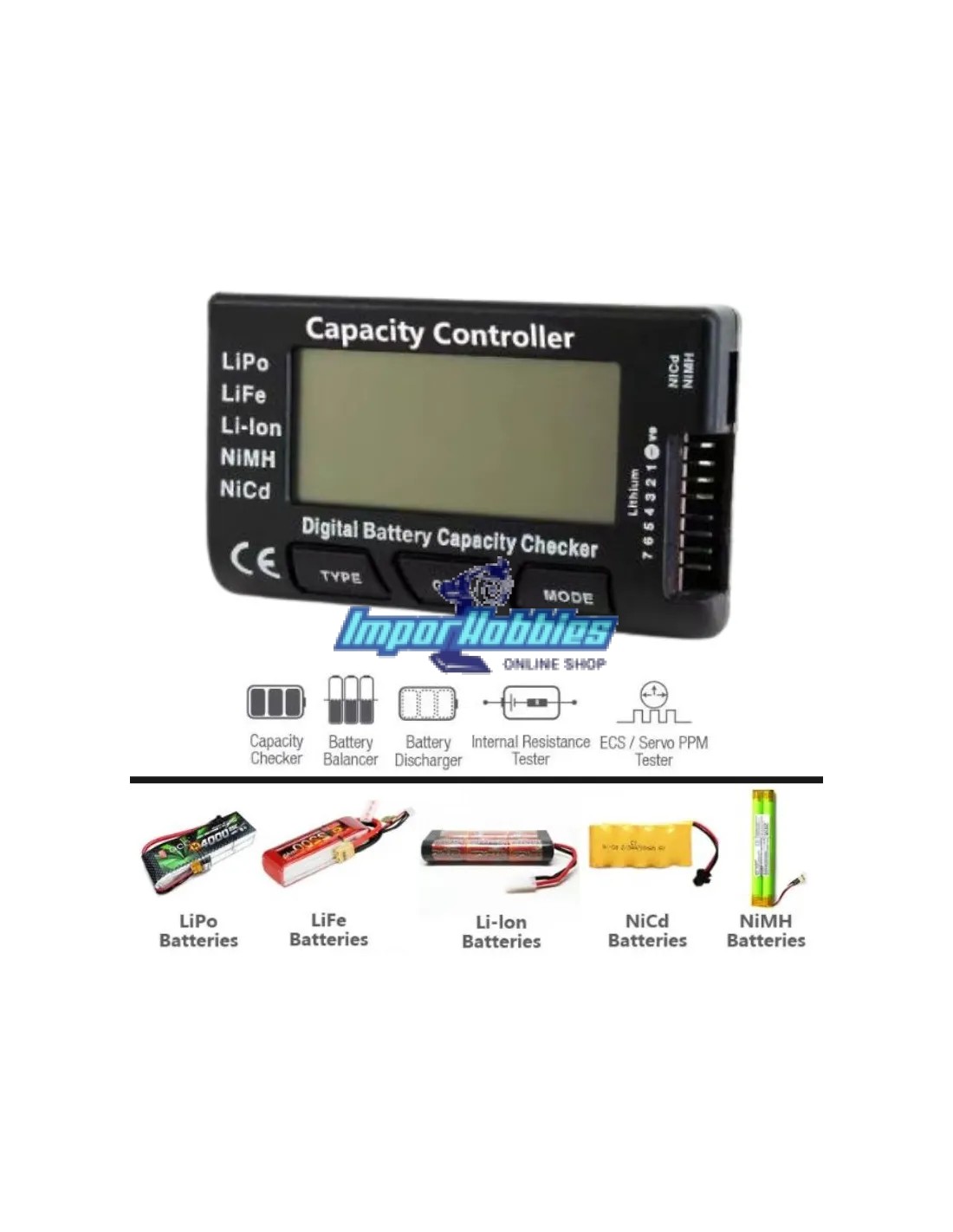

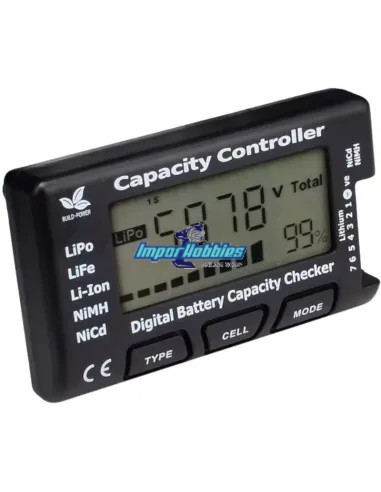

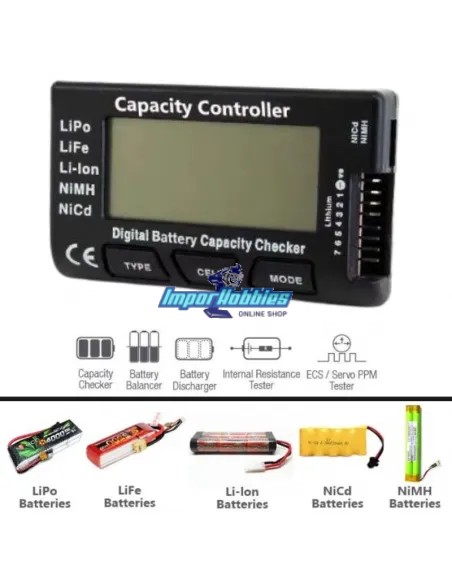

Battery Tester - LiPo / LiFe / NiMh / NiCd Cellmeter 7

The battery analyzer is an indispensable tool for all amateurs and professionals. With simple steps, the lithium or nickel status can be precisely controlled.

Specifications:
Number of cells: 2-7 LiPo / LiFe / Li-Ion, 4-7 NiMH / NiCd cells,
Dimensions: 83x49x16mm


The lithium battery is only combined with the balance to the male connector of the battery analyzer. For nickel batteries, an independent connection is used with the JR system.


Characteristics:
• 2-7s LiPo / LiFe / Li-Ion
• 4-7 NiMH / NiCd cells
• Graphic display
• Balancer- / JR-Anschluss
• Compact size

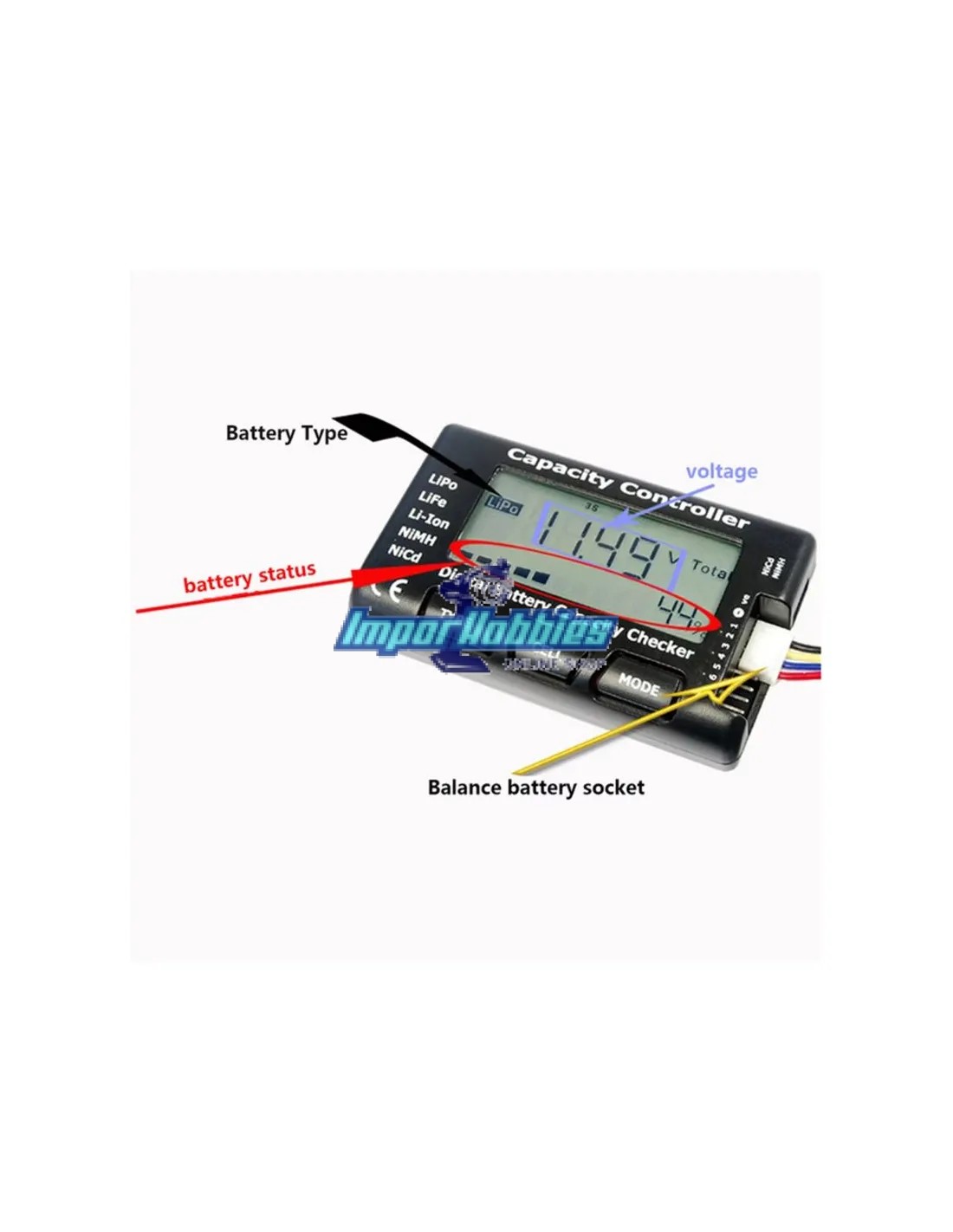

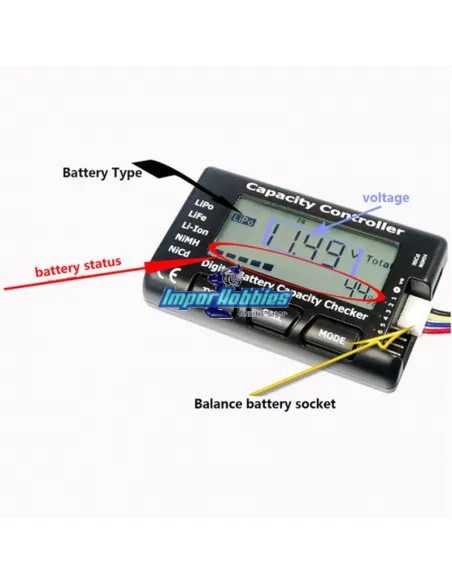

The following information can be displayed for lithium batteries:
• Battery voltage
• Low battery
• Visualization of the voltages of each cell
• Cell with minimum voltage
• Cell with the highest voltage
• Cell with minimum voltage
• The difference in the maximum voltage of individual cells and minimum

The following information can be displayed for nickel batteries:
• Battery voltage
