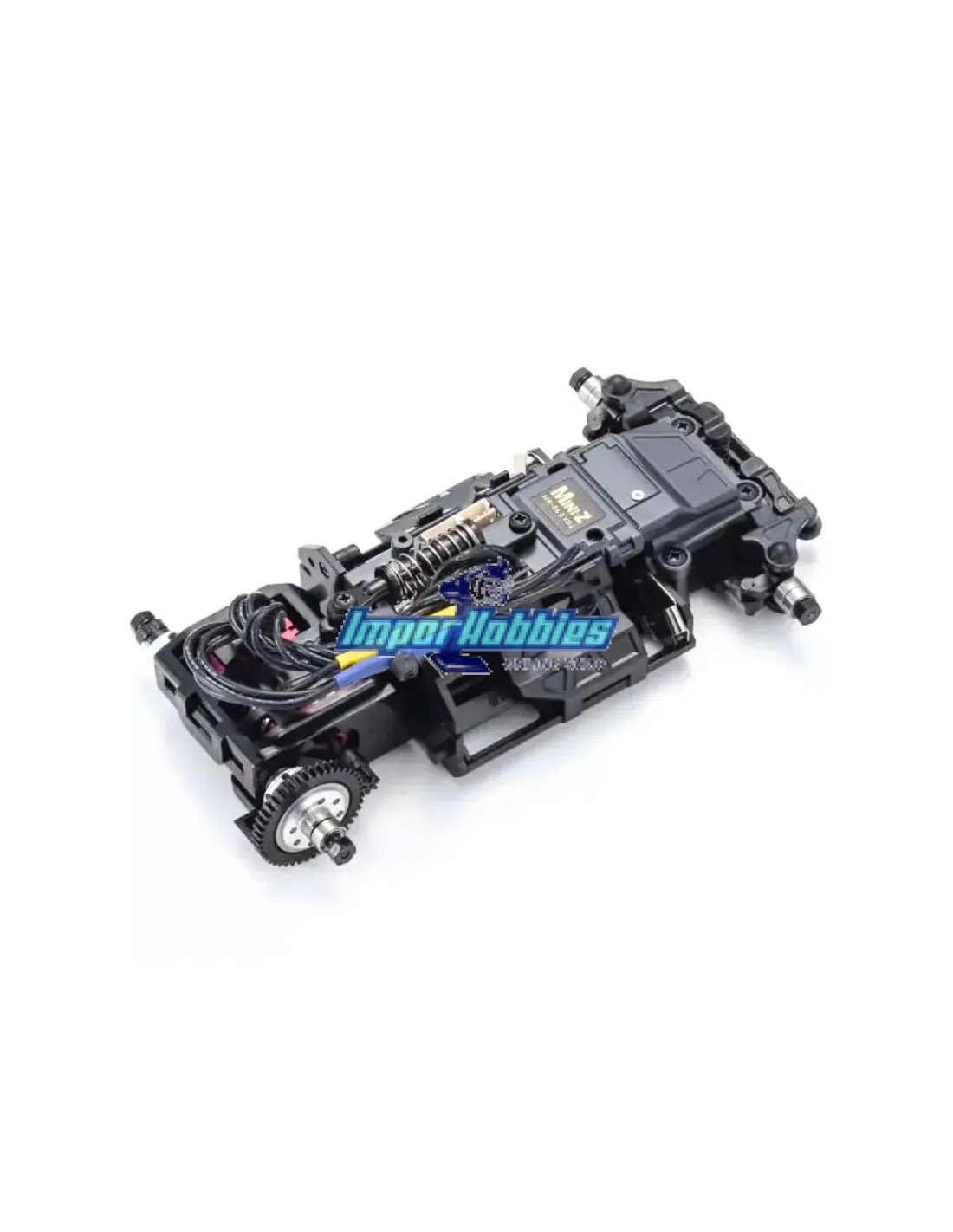

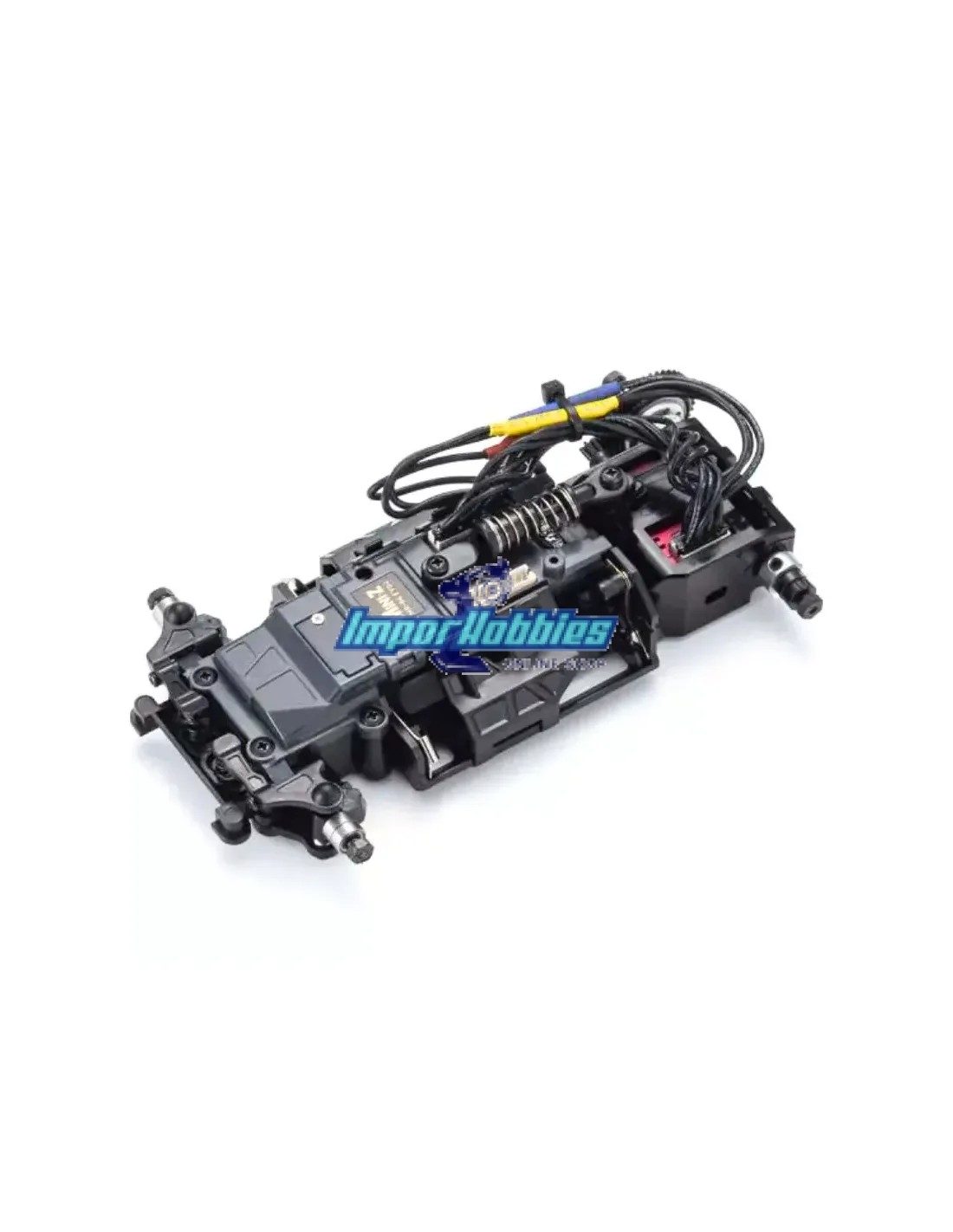

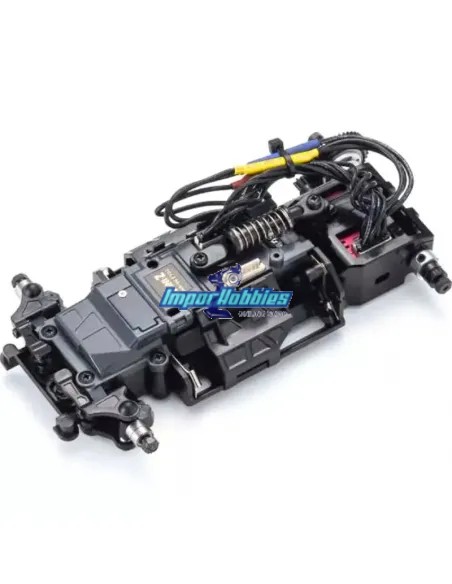

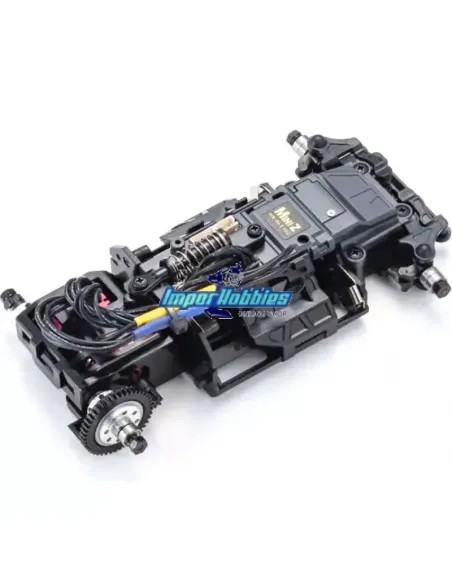

Kyosho Mini-Z MR-04 EVO2 8500KV Chassis Set 32890

Full update of the Mini-Z MR-04EVO2 8500KV model delivering incredible performance!

Total balance takes performance to new heights.

While retaining elements of the excellent design of the MR-03, the new MR-04EVO2 chassis achieves significant improvements with changes in the front suspension and a lower CG that work in synergy with a sensor-equipped brushless motor.

Complete instruction manual. Click here.

Technical Data:

■Length: 124.5mm

■Width: F:72mm ／ R: 76mm

■Height: 31mm

■Wheelbase: 98.0mm (LL)

■Tread: F：61.5〜66.5mm／R：61.5〜65mm

■Tires (F/R): φ25×8.5mm (sold separately)/φ25×8.5〜11mm (sold separately)

■Gear Ratio: 7.3、6.3、5.5、4.9：1

■Weight: 135.5g (approx.)

■Motor: KYOSHO SPEED HOUSE/8500KV Brushless Motor

Kit Contents:

●MR-04W-MM Factory assembled chassis with KYOSHO SPEED HOUSE XSPEED 85（8500KV） brushless motor

●Parts set for changing front tread

●6T・7T・8T・9T Pinion gears

●Wheel wrench

●Tools for pinion gears

●Spare wheel nuts

Required for Operation:

●Receiver unit

●Transmitter compatible with receiver unit

●Auto Scale Collection (body set, wheels, tires)

●AAA x 4 alkaline batteries or Ni-MH batteries for chassis

●Batteries for transmitter
